ERRBUF and RETCODE in ORACLE APPS

First time while registering the concurrent programs we forget the 2 mandatory parameters. After the error we can know that we need to you those mandatory parameters those are ERRBUF and RETCODE.
These are really good if you use properly.

ERRBUF: It return the error message. For you program if you get any error in exception block you can assign the error message to this parameter. This error message you can see after concurrent program run go to details button it will open details in that Completion Text filed will show your errbuf.

RETCODE: This parameter returns the status of the concurrent program.
0- Success --Completed
1- Warning -- Yellow color
2- Error -- Red

These parameters we call as a first parameters for the program.

Ex:
Create procedure  concurren1(ERRBUF out varchar2, RETCODE  out varchar2, v_order_id in varchar2)

Imortant Note:
If you register a PL SQL program as a concurrent program, call the program from another PLSQL, then the error message or any message can not be returned to the calling program. Program can only return the status of the program.

Depending on the one DFF value, another DFF will be enabled or disabled

The following concept is also applicable for report parameters

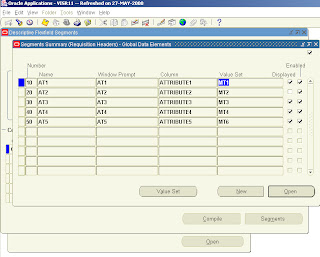

Here in this case if the AT1 value is ‘Y’ then AT3,AT4,AT5 will be enabled.

If ‘N’ then it will be disabled

MT1 is independent value set.

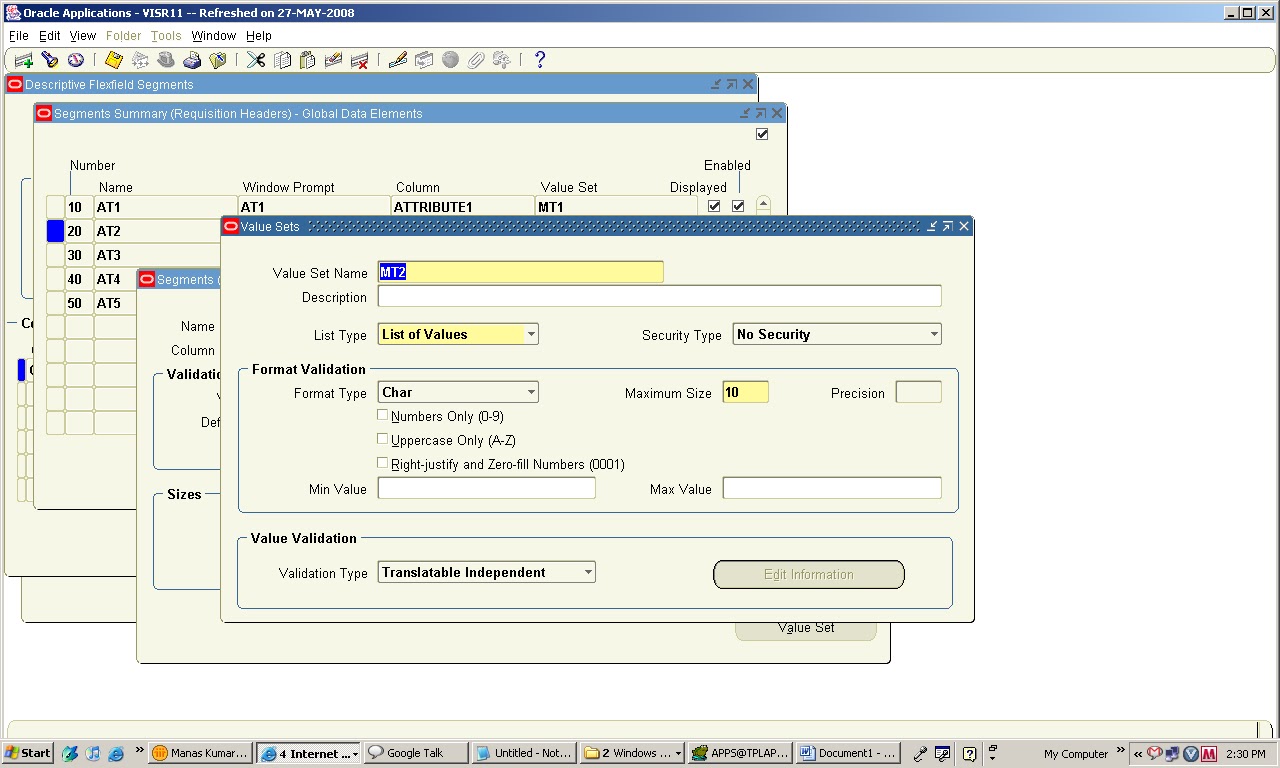

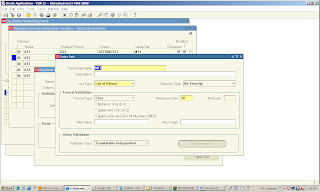

MT2 is Translated independent.

Default Type: ‘SQL Statement’,

Default Vale: SELECT DECODE(:$FLEX$.MT1,'Y','Y',NULL) FROM DUAL

Display property of AT2 is null

MT3 and MT4 are table dependent value set.

Reading XML data using PLSQL (XML persing)

This Document explains the steps of how we read an XML data file using PLSQL and write them to oracle tables.


Create a UTL Directory.

This involves the following steps.
Creating a Logical directory and giving the Permissions to access this directory using an URL.
Using the XML Dom Parser Procedures to read the Xml file , parse it
and then load it into the respective columns.

1) Create a logical directory
Create or replace directory TEST_LOB_DIR as '/data/tst1/attachment'
It creates a directory with Owner SYS.Grant privileges on this directory to Apps.

2) Create a physical directory at the given location ‘/data/tst1/attachment’
Permissions on this directory too.This directory has to be a UTL directory.

3) Edit the conf file at this path
Cd $IAS_ORACLE_HOME/Apache/Apache/conf
==>/apps/applmgr/tst1ora/IAS/Apache/Apache/conf
Edit the file apps.conf
Alias /attachment/ "/data/tst1/attachment/"
<Location /attachment/>
Order allow, deny
Allow from all
</Location>

4) Bounce the Apache.


Create a procedure to parse and retrieve the XML data and then insert it into appropriate columns in the database.
Used two PLSQL packages for these –
1. XMLPARSER
2. XMLDOM

1. XMLParser –
Procedures
i.)parse(p Parser, url VARCHAR2)
Description – The parse procedure takes two parameters which are the parse object and the url of the
xml file that has to parsed.
ii.) setValidationMode(p Parser, yes BOOLEAN)
Checks whether XML is Valid or not.
iii.) setBaseDir(p Parser, dir VARCHAR2)
Sets the base url or directory path.
iv.) getDocument(p Parser)
Get the Document which has to be parsed.

2. XMLDOM
DOMDocument
DOMELEMENT
DOMNODELIST
DOMNODE
DOMNamedNodeMap
FUNCTIONS –
getNodeName(n DOMNode) RETURN VARCHAR2 - Retrieves the Name of the Node
getNodeValue(n DOMNode) RETURN VARCHAR2 - Retrieves the Value of the Node
getElementsByTagName(doc DOMDocument, tagname IN VARCHAR2)- Retrieves the elements in
the by tag name
getDocumentElement(doc DOMDocument) RETURN DOMElement - Retrieves the root element of
the document
getFirstChild(n DOMNode) RETURN DOMNode - Retrieves the first child of the node
getLength(nl DOMNodeList) RETURN NUMBER- Retrieves the number of items in the list.



Sample XML File

-<vapi_HRMS>

- <record>

  <EmpID>O01006923</EmpID>

  <vcEmp_Full_Name>Vinod Mudakkayil</vcEmp_Full_Name>

  <vcDesignation>VP</vcDesignation>

  <chLevel>L8</chLevel>

  <chGrade>-</chGrade>

  <vcDepartment>HR-Recruitment</vcDepartment>

  <vcProgram_Name>HR - Recruitment</vcProgram_Name>

  <vcSub_Program_Name>HR-Recruitment</vcSub_Program_Name>

  <vcEmail_ID>vinodm@247customer.com</vcEmail_ID>

  <vcCentername>Bangalore</vcCentername>

  <intSeniorID>01040101</intSeniorID>

  <Hop_Id>101006923</Hop_Id>

  <VP_Id>101006923</VP_Id>

  <VCEMP_STATUS>CORPORATE</VCEMP_STATUS>

  <vcEmp_First_Name>Vinod</vcEmp_First_Name>

  <vcEmp_Last_Name>Mudakkayil</vcEmp_Last_Name>

  <vcEmp_Gender>Male</vcEmp_Gender>

  <vcEmp_DOJ>2005/04/07</vcEmp_DOJ>

  <dob>4-Mar-1963</dob>

  </record>

- <record>

  <EmpID>P01006923</EmpID>

  <vcEmp_Full_Name>Vinod Mudakkayil</vcEmp_Full_Name>

  <vcDesignation>VP</vcDesignation>

  <chLevel>L8</chLevel>

  <chGrade>-</chGrade>

  <vcDepartment>HR-Recruitment</vcDepartment>

  <vcProgram_Name>HR - Recruitment</vcProgram_Name>

  <vcSub_Program_Name>HR-Recruitment</vcSub_Program_Name>

  <vcEmail_ID>vinodm@247customer.com</vcEmail_ID>

  <vcCentername>Bangalore</vcCentername>

  <intSeniorID>01040101</intSeniorID>

  <Hop_Id>01006923,101006923,O01006923</Hop_Id>

  <VP_Id>O01006923</VP_Id>

  <VCEMP_STATUS>CORPORATE</VCEMP_STATUS>

  <vcEmp_First_Name>Vinod</vcEmp_First_Name>

  <vcEmp_Last_Name>Mudakkayil</vcEmp_Last_Name>

  <vcEmp_Gender>Male</vcEmp_Gender>

  <vcEmp_DOJ>2005/04/07</vcEmp_DOJ>

  <dob>4-Mar-1963</dob>

  </record>

  </vapi_HRMS>

Sample Code

-- Call the procedure ---

PROCEDURE xml_perse (

      errbuf    OUT   VARCHAR2,

      retcode   OUT   NUMBER,

      dir             VARCHAR2,

      inpfile         VARCHAR2

   )

   IS

      p         xmlparser.parser;

      doc       xmldom.domdocument;

      docelem   DBMS_XMLDOM.domelement;

-- prints elements in a document

   BEGIN

-- new parser

      p := xmlparser.newparser;

-- set some characteristics

      xmlparser.setvalidationmode (p, FALSE);

      fnd_file.put_line (fnd_file.LOG, ' xml_perse Validated');

--xmlparser.setErrorLog(p, dir || '/' || errfile);

      xmlparser.setbasedir (p, dir);

      fnd_file.put_line (fnd_file.LOG, ' xml_perse set path');

-- parse input file

      xmlparser.parse (p, dir || '/' || inpfile);

      fnd_file.put_line (fnd_file.LOG, ' xml_perse parse');

-- get document

      doc := xmlparser.getdocument (p);

      fnd_file.put_line (fnd_file.LOG, ' xml_perse get document');

-- Print document elements

      DBMS_OUTPUT.put ('The elements are: ');

      printelements (doc);

      COMMIT;

   EXCEPTION

      WHEN OTHERS

      THEN

         --SQLERRM

         DBMS_OUTPUT.put (SQLERRM);

   END xml_perse;

   PROCEDURE printelements (doc xmldom.domdocument)

   IS

      nl1                  xmldom.domnodelist;

      nl2                  xmldom.domnodelist;

      nl3                  xmldom.domnodelist;

      nl4                  xmldom.domnodelist;

      nl5                  xmldom.domnodelist;



      len1                 NUMBER;

      len2                 NUMBER;

      len3                 NUMBER;

      len4                 NUMBER;

      len5                 NUMBER;



      n1                   xmldom.domnode;

      n2                   xmldom.domnode;

      n3                   xmldom.domnode;

      n4                   xmldom.domnode;



      nnm                  xmldom.domnamednodemap;

      attrname             VARCHAR (1000);

      attrval              VARCHAR (1000);

      v_empid              VARCHAR2 (1000);

      v_emp_full_name      VARCHAR2 (1000);

      v_designation        VARCHAR2 (1000);



   BEGIN

-- get all elements

      fnd_file.put_line (fnd_file.LOG, 'get all elements');

      nl1 := xmldom.getelementsbytagname (doc, 'record');

      nl2 := xmldom.getelementsbytagname (doc, 'EmpID');

      nl3 := xmldom.getelementsbytagname (doc, 'vcEmp_Full_Name');

      nl4 := xmldom.getelementsbytagname (doc, 'vcDesignation');



      fnd_file.put_line (fnd_file.LOG, 'Length of the Elements');

--- Length of the Elements

      len1 := xmldom.getlength (nl1);

      len2 := xmldom.getlength (nl2);

      len3 := xmldom.getlength (nl3);

      len4 := xmldom.getlength (nl4);

-- loop through elements

      FOR i IN 0 .. len1 - 1

      LOOP

         v_empid := NULL;

         v_emp_full_name := NULL;

         v_designation := NULL;



         n1 := xmldom.item (nl1, i);

         n2 := xmldom.item (nl2, i);

         n3 := xmldom.item (nl3, i);

         n4 := xmldom.item (nl4, i);

         v_empid := xmldom.getnodevalue (n2);

         v_emp_full_name := xmldom.getnodevalue (n3);

         v_designation := xmldom.getnodevalue (n4);



         fnd_file.put_line (fnd_file.LOG, '***************************');

         fnd_file.put_line (fnd_file.LOG, v_empid);

         fnd_file.put_line (fnd_file.LOG, v_emp_full_name);

         fnd_file.put_line (fnd_file.LOG, v_designation);



         fnd_file.put_line (fnd_file.LOG, '***************************');

         DELETE FROM xx_employee_temp;

         --WHERE status = 'S';

         INSERT INTO xx_employee_temp

                     (empid, emp_full_name, designation,status, error_description

                     )

              VALUES (v_empid, v_emp_full_name, v_designation,NULL, NULL

                     );

         DBMS_OUTPUT.put_line (' ');

      END LOOP;

      fnd_file.put_line (fnd_file.LOG, 'Inserted');

   END printelements;
